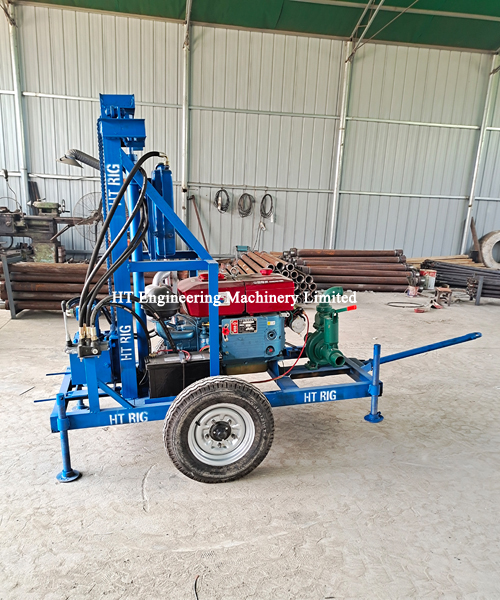

Portable Water Well Borehole Drilling Rig Price--DH150 (Diesel Hydraulic)

HT Brand Portable Water Well Drill Rig For Sale

Description: Portable Water Drill Rigs for Sale: Compact and Efficient Drilling Solutions.
INQUIRY EMAIL

Portable Water Drill Rigs for Sale: Compact and Efficient Drilling Solutions:

Introduction and Applications:

Our portable water drill rigs are designed for easy transport and versatile use in various drilling projects. If you're searching for a portable drill rig for sale, look no further.

These compact rigs are perfect for water well drilling in remote or hard-to-access locations. Despite their small size, our portable water rigs offer powerful performance, making them ideal for both residential and agricultural well drilling. Discover the convenience and efficiency of our portable drilling solutions and get the right rig to meet your drilling needs.

Advantages:

1 One man can operate, auto water flow control function.
2 Double lift chains, with hydraulic oil radiator.
3 Drilling process is stable, no jamming or shaking.
4 Electric start, it can charge the battery automatically.
5 Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak.
6 hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)

Brief description:

Working Principle: Positive Cycle, hydraulic power.

Optional Parts: PDC diamond bit, tricone bit.

Engine: 25Hp diesel engine.

Mud Pump: Built-in pump or separated pump.

FAQ:

1 What is drilling Bit ? It is the drilling bit at the end of the drilling pipe, it can decide the diameter of the well. We can customize the drilling bit according to your requirement.
2 What is drilling Pipe(rod)? It deccides how deep you can drill a well, the material is steel.OD(outer diameter) is 42/50/64mm.

Water borehole drilling rig Technical Parameters:

Model	DH150
Principle	Positive Cycle
Hydraulic Power	25Hp-Diesel Engine
Water Pump Power	Centrifugal Pump--8Hp
Max Drilling Depth	150m
Max Drilling Diameter	420mm
Drilling Pipe	51mm diameter,1.5m/piece
Drilling Bit	Alloy Steel For Soil	2 pieces
Drilling Bit	PDC For Rocks	Diameter should be within 250mm
Other Parts For One Complete Machine	High pressure water pump-1 unit
	High pressure water pipe-5m
	Tools, seat, oilseal, English manual, Etc
