Portable Water Well Borehole Drilling Rig Price--DH150 (Diesel Hydraulic)

Water Well Hand Drilling Boring Tools HT Brand

Description: HT Brand High Quality Water Well Hand Drilling Boring Tools. Type: Water Well Hand Drilling Tools. Brand Name: HT. Certificate: CE.
INQUIRY EMAIL

Water Well Hand Drilling Boring Tools:

Introduction and Applications:

Manual water well drilling equipment cannot match the efficiency and speed of powered drilling rigs. Powered drilling equipment, such as motor-driven rigs or hydraulic systems, can penetrate various types of soil and rock more quickly and with less physical effort from the operator. HT is a professional manufacturer for water well hand drilling tools, water well drilling tools.

Brief description:

Working Principle: Positive Cycle, hydraulic power.

Optional Parts: PDC diamond bit, tricone bit.

Engine: 25Hp diesel engine.

Mud Pump: Built-in pump or separated pump.

FAQ:

1 What is drilling Bit ? It is the drilling bit at the end of the drilling pipe, it can decide the diameter of the well. We can customize the drilling bit according to your requirement.
2 What is drilling Pipe(rod)? It deccides how deep you can drill a well, the material is steel.OD(outer diameter) is 42/50/64mm.

Water Well Drilling Tools Technical Parameters:

Model	DH150
Principle	Positive Cycle
Hydraulic Power	25Hp-Diesel Engine
Water Pump Power	Centrifugal Pump--8Hp
Max Drilling Depth	150m
Max Drilling Diameter	420mm
Drilling Pipe	51mm diameter,1.5m/piece
Drilling Bit	Alloy Steel For Soil	2 pieces
Drilling Bit	PDC For Rocks	Diameter should be within 250mm
Other Parts For One Complete Machine	High pressure water pump-1 unit
	High pressure water pipe-5m
	Tools, seat, oilseal, English manual, Etc

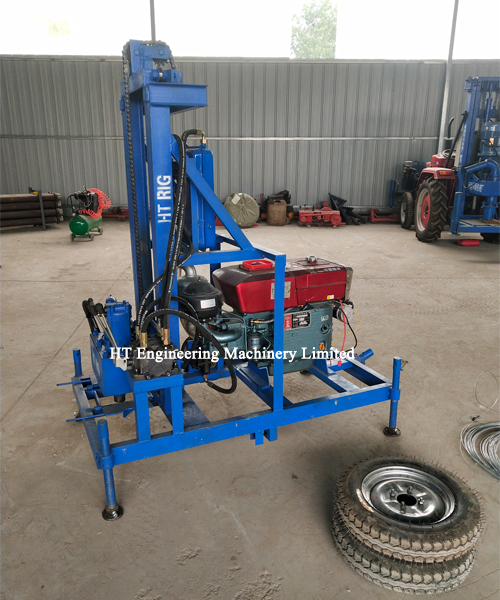

Water Well Hand Drilling Tools:

Water Well Hand Drilling Tools

Water Boring Tool DH150 Operation Video.

We also have electric E80/E100 water well drilling tools:

E80 water well drilling rig

E80 well drilling tools working video in Youtube:

We also have DH200 water well tools:

DH200 water well tools

DH200 water well drilling tools working video in Youtube:

In rural areas where access to advanced machinery is limited, hand drilling well is a common practice for accessing clean water. The process of hand drilling wells involves manually penetrating the soil layer by layer. Despite being labor-intensive, hand drilling well remains a vital technique in many communities for securing a sustainable water supply.
