Portable Water Well Borehole Drilling Rig Price--DH150 (Diesel Hydraulic)

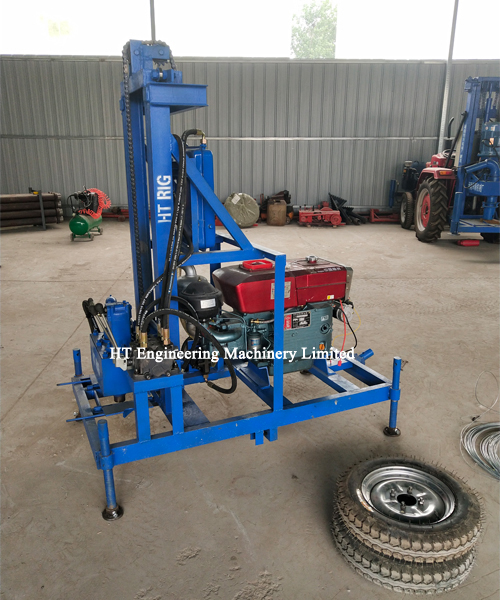

Mini Well Drillers HT Brand New Arrival

Description: Our mini well drillers are the perfect solution for small-scale water well drilling projects.
INQUIRY EMAIL

Well Drillers:

Introduction and Applications:

Our mini well drillers are the perfect solution for small-scale water well drilling projects. Designed for portability and ease of use, these compact machines offer powerful performance in tight spaces and challenging terrains.

Ideal for residential properties, farms, and remote areas, these mini drillers combine efficiency with low operational costs, making them a top choice for quick and reliable drilling. Explore our range of mini well drillers and experience the convenience of a small yet powerful drilling machine.

Advantages:

1 One man can operate, auto water flow control function.
2 Double lift chains, with hydraulic oil radiator.
3 Drilling process is stable, no jamming or shaking.
4 Electric start, it can charge the battery automatically.
5 Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak.
6 hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)

Brief description:

Working Principle: Positive Cycle, hydraulic power.

Optional Parts: PDC diamond bit, tricone bit.

Engine: 25Hp diesel engine.

Mud Pump: Built-in pump or separated pump.

FAQ:

1 What is drilling Bit ? It is the drilling bit at the end of the drilling pipe, it can decide the diameter of the well. We can customize the drilling bit according to your requirement.
2 What is drilling Pipe(rod)? It deccides how deep you can drill a well, the material is steel.OD(outer diameter) is 42/50/64mm.

Well Driller Technical Parameters:

Model	DH150
Principle	Positive Cycle
Hydraulic Power	25Hp-Diesel Engine
Water Pump Power	Centrifugal Pump--8Hp
Max Drilling Depth	150m
Max Drilling Diameter	420mm
Drilling Pipe	51mm diameter,1.5m/piece
Drilling Bit	Alloy Steel For Soil	2 pieces
Drilling Bit	PDC For Rocks	Diameter should be within 250mm
Other Parts For One Complete Machine	High pressure water pump-1 unit
	High pressure water pipe-5m
	Tools, seat, oilseal, English manual, Etc
