Mini Water Well Borehole Drilling Rig--E80&100 (Electricity)

New Designed Water Swivel Well Rig Drilling Diy

Use: Water Well Drilling
Type: Water Swivel Well Rig Drilling Diy
Brand Name: HT
Certificate: CE
Description: HT is a professional manufacturer for water swivel well drilling diy, water well rig swivel, drill water rig swivel.
INQUIRY EMAIL

Water Swivel Well Rig Drilling Diy:

HT is a professional manufacturer for water swivel well drilling diy, water well rig swivel.

Water Well Rig Swivel:

Model	E80	E100
Principle	Positive Cycle	Positive Cycle
Electricity	Single Phase	Three Phases
Drive Motor	2kw (60V DC)	3kw
Lift Mtor	1.5kw (60V DC)	1.5kw
High Pressure Submerged Pump	2.2kw	2.2kw
Max Drilling Depth	80m	100m
Max Drilling Diameter	200mm	400mm
Drilling Pipe	42mm diameter, 1.5m/piece	50mm diameter, 1.5m/piece
Drilling Pipe Equipped	50m	50m
Drilling Bit Equipped	2 pieces	2 pieces
Drilling Bit Equipped	One small bit (60mm,90mm) + one big bit (160-500mm)
Other Parts For One Complete Machine	High pressure submerged pump-1 unit
	High pressure water pipe-5m
	Voltage transformer(change 220V AC to 60V DC)
	Only used for E80-P1 model
	Tools, seat, oil seal, English manual, etc

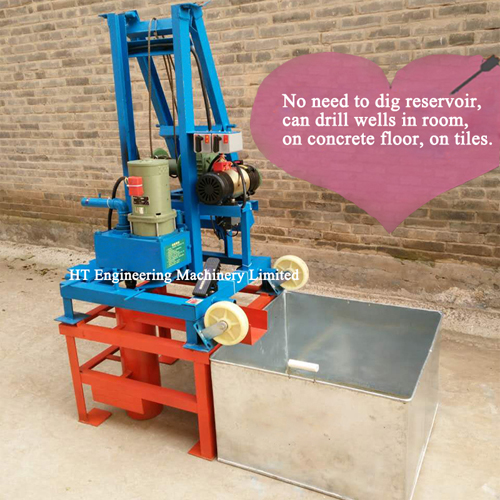

Electric water well drilling machine:

100m Electric Water Well Drilling Rigs Machines

Water Swivel Well Drilling Diy:

Water Swivel Well Rig Drilling Diy

E80 E100 water swivel well drilling working video.

We also have diesel hydraulic DH150 water swivel well drilling machine:

DH150 working video in Youtube:

We also have big DH200 water well rig swivel:

water well drilling rig

DH200 working video in Youtube:

DIY water well drill, : a guide to swivel and equipment:
Water well drilling can be a rewarding do-it-yourself (DIY) project, especially if you're seeking a sustainable and independent water source for your property. Among the various components of a water well drilling rig, the swivel plays a crucial role. In this article, we'll delve into the water swivel design.

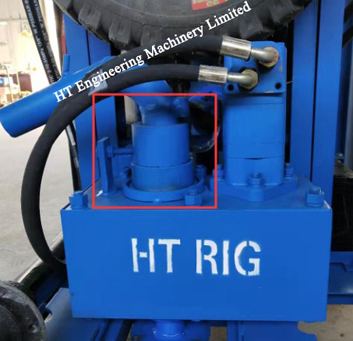

Water well drill rig swivel:
The drill water swivel is a mechanical device that allows the drill rods to rotate freely while maintaining a fluid connection for mud or water.
The drilling rig swivel is designed for durability, longevity, sealing capabilities and rotational smoothness, as they must withstand the rigors of drilling operations.
Pressure Resistance:
A robust drill swivel can withstand these pressures without leaking or failing, ensuring the integrity of the drilling process.
Flow Efficiency:
An optimal water well rig swivel maximizes flow rates while minimizing turbulence.
Compatibility:
Compatibility with different drill rod sizes and types is essential for versatility and adaptability in various drilling scenarios.
Durability:
A durable water swivel constructed from high-quality materials and precision engineering.
Ease of Maintenance:
Keep water well drilling swivels in optimal condition with minimal effort.
