A high-lift gasoline engine water pump is a type of water pump equipment that utilizes a gasoline engine as its power source. This pump typically possesses powerful motive force and stable performance, enabling it to handle various complex pumping environments. Additionally, due to its gasoline engine power source, it boasts high power and flexibility, making it suitable for multiple applications such as agricultural irrigation, water supply for construction sites, emergency firefighting, and urban environmental protection.
Made of genuine materials, quality is visible！

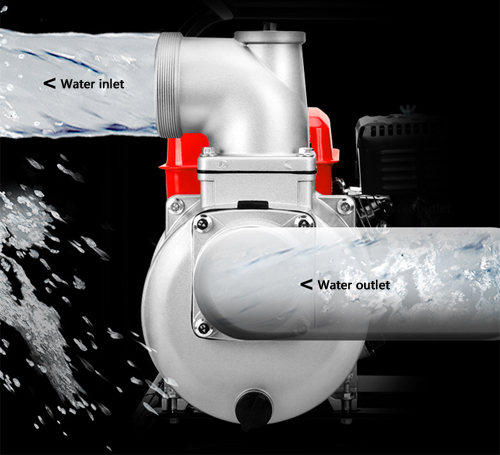

1. Aluminum alloy inlet and outlet
Solid and reliable, not easy to generate nickel-hydrogen, wear-resistant and corrosion-resistant"

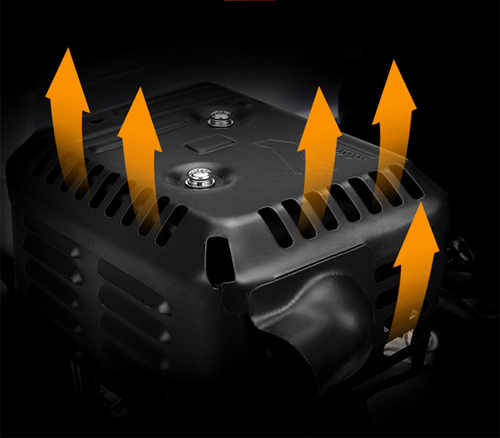

2. Efficient heat dissipation for longer lifespan
Effectively dissipates engine heat, extending the product's service life

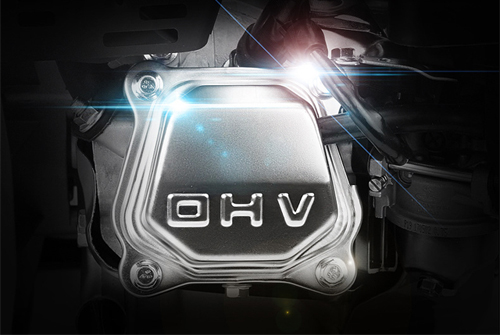

3. Four-stroke OHV engine
Efficient and economical fuel consumption, low noise, fuel-saving, energy-saving, and environmentally friendly

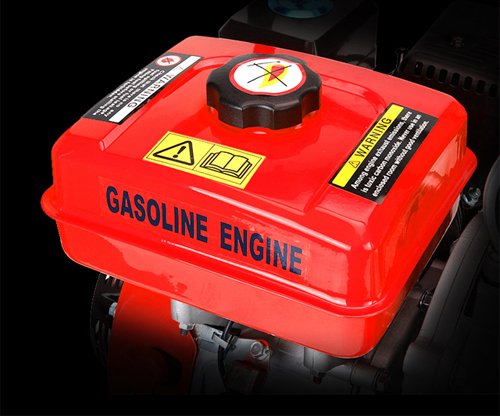

4. Large-capacity fuel tank
Sufficient fuel for one filling, heat and cold insulation, made of thickened stainless steel with good sealing performance
Product Parameters:
Model
170F-S20EH
192F-S30EH
192F-S30EH
Inlet and outlet
diameter (mm)
50
80
80
Rated maximum
flow rate (m³/h)
20/40
40/50
30/50
Head (m)
rated/maximum
70/100
60/80
80/120
Suction lift (m)
rated/maximum
7
7
7
Self-priming time
(S) Rotation speed(r/min)
3600
3600
3600
Matched engine
model
170F
192F
192F
Displacement (ml)
212
420
440
Rated power (kW)
5.5
8.0
8.0
Rated rotation
speed (r/min)
3600
3600
3600
Engine oil
capacity (L)
0.7
1.10
1.10
Fuel capacity (L)
3.6
6.5
7
Application Range：
Bulk pricing applies even for a single unit! If you're in need of a gasoline engine water pump, feel free to contact me anytime!
